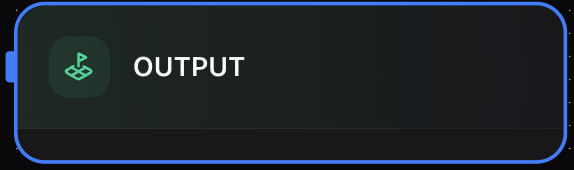

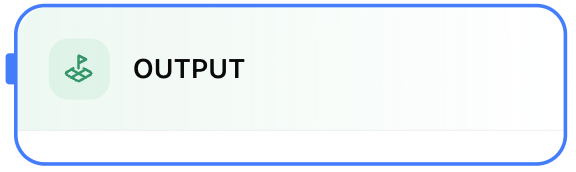

Screenshot 2025-07-22 at 1.11.05 AM.png The Output Node is the final step in every Dume AI workflow, responsible for consolidating data and delivering the result of your automation. It acts as the workflow’s endpoint—whether you are sending a message to a user, triggering an external process, or providing processed data for another system.

​
Key Functions

  • Collect Final Data: Gathers the outputs from one or more preceding workflow nodes.
  • Shape the Response: Define exactly what information will be returned—whether a single value, a structured object, or a collection of data fields.
  • Integrate With Tools: Serves as the delivery point for workflow results consumed by chatbots, APIs, or other services.

​
Features

  • Flexible Output Variables: Drag in any data produced throughout your workflow—results, AI-generated text, API responses, computed values, etc.
  • Custom Structure: Output can be as simple (a single string) or as rich (nested objects/arrays) as needed.
  • Data Mapping: Clearly map which node outputs appear in the final result.
  • Documentation Field: Optionally describe what this output represents to help collaborators or future you.

​
How It Works

  1. Add Output Node: Place the Output Node as the last step in your automation.
  2. Select Output Variables: Assign any variable from earlier nodes (LLM, Tool, Condition, Http, etc.) to named output fields.
  3. Review & Document: Describe your output’s purpose for clarity—useful for complex flows or team projects.
  4. Connect the Endpoint: Workflow execution stops here, and the constructed result is delivered to the consumer (chatbot, API, etc.).

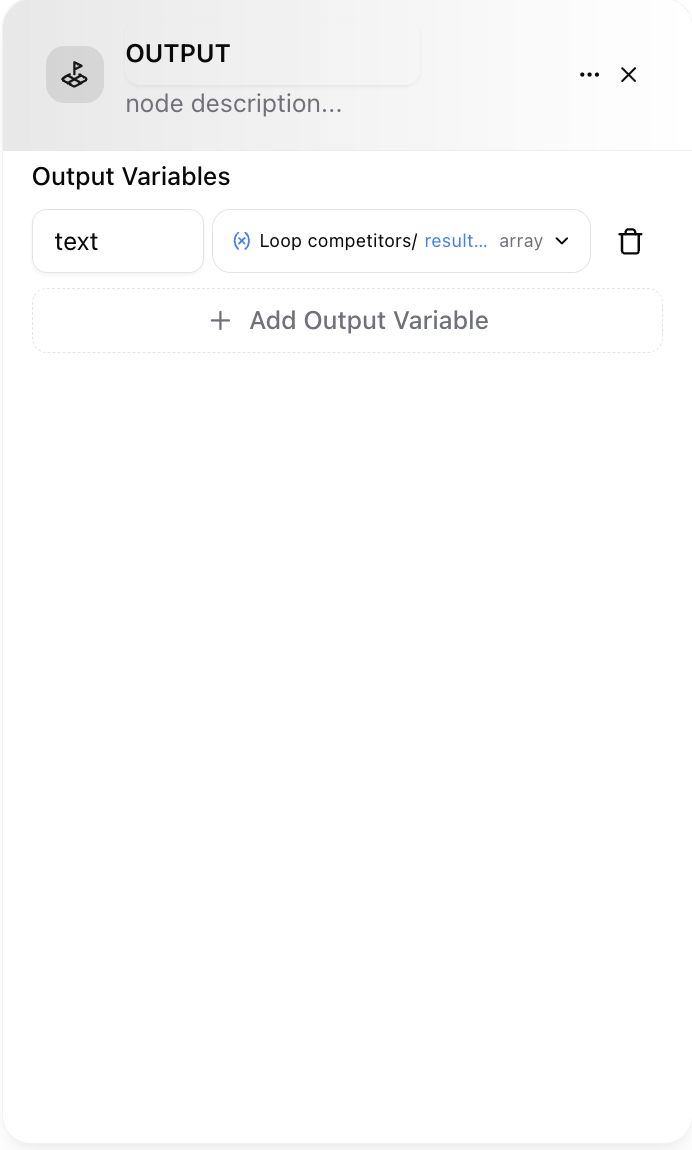

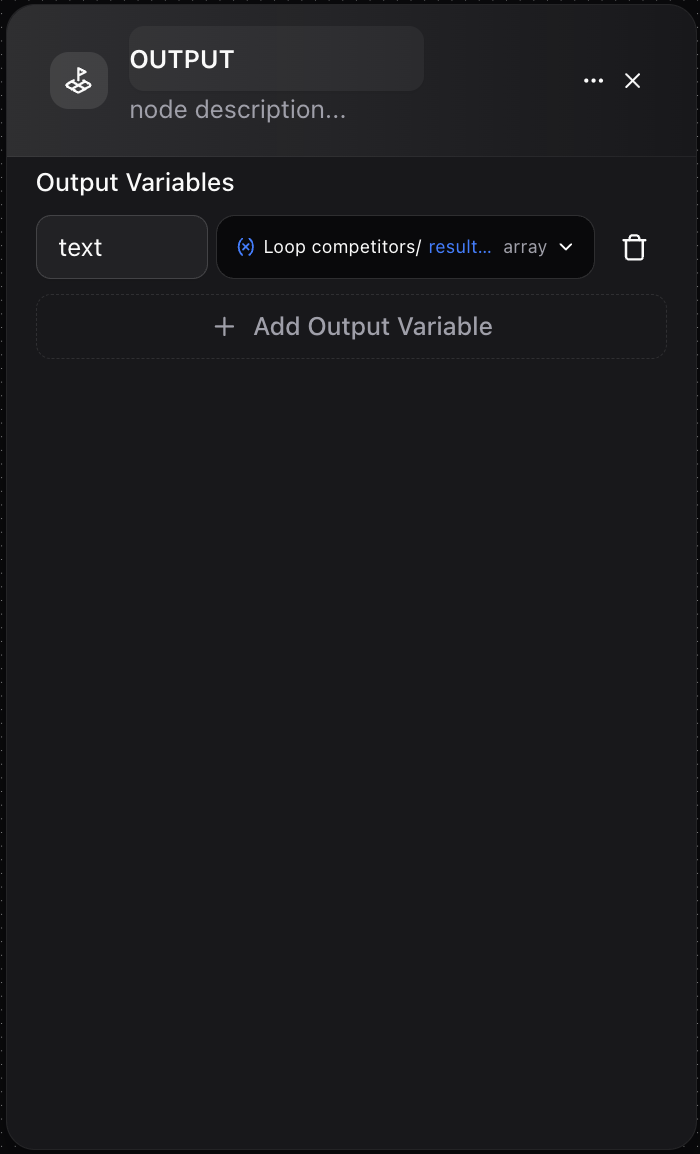

Screenshot 2025-07-22 at 1.11.31 AM.png

​
Example Use Cases

  • AI Content Generation: Return both the headline and body created in earlier nodes, packaged into a clean JSON result.
  • Integration Workflows: Collect external API results and format as a summary response.
  • Batch Processing: Aggregate and output lists of processed items, such as personalized emails or reports.

​
Example

Suppose your workflow writes and publishes a LinkedIn post using AI. In the Output Node, you might structure the final result as:
  • { "headline": {LLM_Headline/answer}, "content": {LLM_Body/answer}, "publishStatus": {LinkedInPublisher/tool_result} }
  • headline: The AI-generated opening line.
  • content: The main post body from a previous node.
  • publishStatus: Result of the publishing action (success, error message, etc.).

​
Best Practices

  • Name Your Outputs Clearly: Make it obvious what each field contains.
  • Document Your Intent: Use the description field to clarify the purpose of each output, especially in shared workflows.
  • Aggregate Logically: For workflows producing arrays/collections, ensure outputs are consistent and easy to consume.
  • Review Dependencies: Confirm all output fields are correctly mapped from valid preceding node data.
The Output Node is essential for closing the loop in your automations—transforming all your workflow’s logic and data flows into a polished, structured result.
